 | KX-ZTT MG |  |  | |
 |
||||
| Part-no.: 12.99607 | ||||
| Description | Value | ||
| | built-in capacitor typ | yes | |
| | frequency MHz | 8 | |
| | internal capacitance C1, C2 in pF | 30 | |
| | frequency tolerance at +25°C in ppm | ±0,5 | |
| | frequency stability at -20° ~ +80°C in % | ±0,3 | |
| | aging for 10 years in % | ±0,3 | |
| | resonant resistance in ohm max. | 80 | |

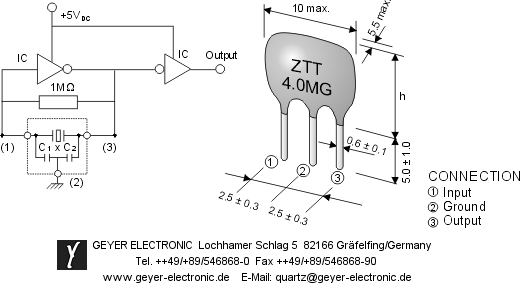

| | test circuit IC | 1/6 CD 4069 UBEX2 | |
| | size l/w/h in mm | 10,0/5,5/8,0 | |
| | RoHS started from date code | May, 2005 | |
| | - Datasheet pdf | ||
|  |
